GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket

  • GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket
  • GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket
Luogo di origine Cina
Marca Ebocom
Certificazione ISO
Numero di modello GJBFJH
Quantità di ordine minimo 2000m
Prezzo 0.1 USD per Meter
Imballaggi particolari Tamboli di compensato o personalizzati
Tempi di consegna 3-10 giorni
Termini di pagamento L/c, t/t
Capacità di alimentazione 50 km al giorno

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Nucleo 2-48 fibra Membro della forza Fabbricazione a partire da filati di poliesteri
Guaina Lszh Temperatura da -20 a 70°C
certificazioni Iso Fibra tampone Fibra di amplificatore stretto
Tipo di fibra SM Colore in fibra Fare riferimento a Cromatogramma
Evidenziare

Indoor breakout fiber optic cable

,

Single mode LSZH fiber cable

,

4-48 core fiber optic cable
Lasciate un messaggio
Descrizione di prodotto

The GJBFJH indoor breakout fiber optic cable is specially designed for indoor fiber distribution and patching systems that require flexibility, safety, and reliability.

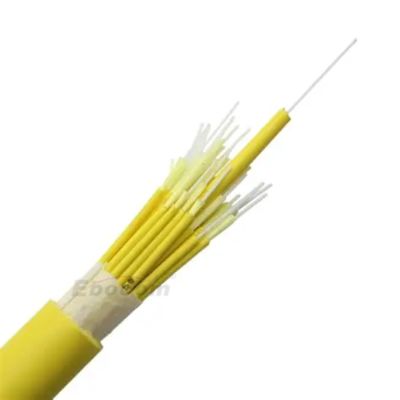

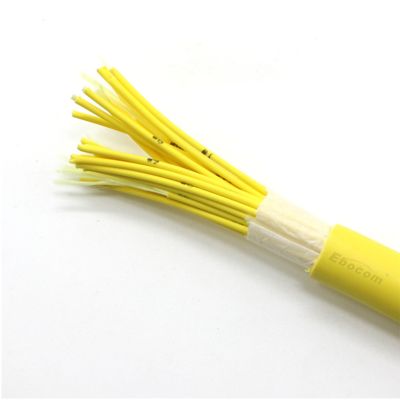

This cable adopts a central FRP (Fiber Reinforced Plastic) strength member, surrounded by multiple 2.0mm sub-units, each consisting of a tight-buffered fiber, aramid or polyester yarns, and an LSZH (Low Smoke Zero Halogen) outer jacket.
It ensures easy termination, excellent mechanical strength, and low signal loss, making it ideal for data centers, FTTH networks, office buildings, and telecom rooms.

Key Features

  • Stable performance: High-quality single-mode G.657A1 or G.652D fiber ensures low attenuation and stable transmission.

  • Reliable strength: Central FRP member and aramid yarn reinforcement provide excellent tensile and crush resistance.

  • Fire safety: LSZH sheath offers flame retardant, low smoke, and halogen-free protection for indoor environments.

  • Easy handling: Each sub-unit can be directly connected, terminated, or re-routed, simplifying installation and maintenance.

  • Wide applications: Suitable for LAN networks, distribution frames, FTTH wiring, and indoor backbone cabling.

Applications

  • Data centers and telecom rooms

  • Building backbone cabling

  • FTTH and FTTB systems

  • Indoor distribution and patching networks

  • Optical communication equipment interconnection

Technical Parameters

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type Single Mode (G.657A1 / G.652D)
Fiber Count 2–48 cores (customizable)
Sub-unit Structure 2.0mm tight-buffered fiber + Aramid/Polyester yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Jacket Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.0mm (depending on fiber count)
Tensile Strength ≥ 1500N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Color Options Yellow (SM)

GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket 0
