GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket

  • GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket
Luogo di origine Cina
Marca Ebocom
Certificazione ISO
Numero di modello GJBFJH
Quantità di ordine minimo 2000m
Prezzo 0.1 USD per Meter
Imballaggi particolari Tamboli di compensato o personalizzati
Tempi di consegna 3-10 giorni
Termini di pagamento L/c, t/t
Capacità di alimentazione 50 km al giorno

Contattatemi per campioni e buoni.

CosaAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete qualche problema, offriamo assistenza online 24 ore su 24.

x
Dettagli
Nucleo 2-48 fibra Membro della forza Fabbricazione a partire da filati di poliesteri
Guaina Lszh Temperatura da -20 a 70°C
certificazioni Iso Fibra tampone Fibra di amplificatore stretto
Tipo di fibra Multi fibra di modo Colore in fibra Fare riferimento a Cromatogramma
Evidenziare

OM2 multimode fiber optic cable

,

indoor breakout fiber cable LSZH

,

4-48 core fiber optic cable
Lasciate un messaggio
Descrizione di prodotto

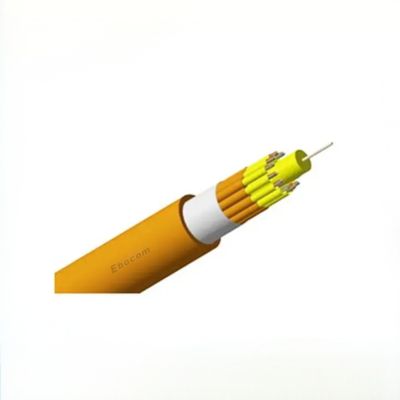

The GJBFJH OM2 indoor breakout fiber optic cable is a durable and flexible solution designed for indoor distribution, interconnection, and patching applications.
It features a central FRP strength member and several 2.0mm sub-units, each containing a tight-buffered OM2 multimode fiber, surrounded by polyester or aramid yarns and an LSZH jacket.
This structure provides easy termination, strong mechanical protection, and excellent fire safety, making it perfect for data centers, local area networks (LAN), and indoor wiring systems.

Main Features

  • High-speed performance: OM2 multimode fibers support up to 10Gbps transmission over 550 meters, ensuring stable and efficient data transfer.

  • Safe for indoor environments: LSZH outer sheath produces minimal smoke and no halogen gases during fire incidents.

  • Strong mechanical protection: Central FRP rod enhances tensile strength and cable stability during installation.

  • Simple deployment: Each sub-unit can be independently stripped and connected — no breakout kit required.

  • Versatile use: Ideal for enterprise networks, backbone cabling, patch panels, and short-distance communication links.

Applications

  • Data centers and control rooms

  • Building backbone and horizontal cabling

  • Indoor fiber distribution and patching systems

  • LAN and server room connections

  • Short-distance high-speed transmission networks

Technical Specifications

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type OM2 Multimode (50/125μm)
Fiber Count 2–48 cores (customized)
Sub-unit Construction 2.0mm tight-buffered fiber + Polyester/Aramid yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Sheath Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.5mm (depends on fiber count)
Attenuation ≤ 3.5dB/km @850nm, ≤ 1.5dB/km @1300nm
Tensile Strength ≥ 1000N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Color Options Orange (OM2 standard) or customized per project requirement

GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket 0

Advantages of Choosing Ebocom

  • 12+ years manufacturing experience in indoor and outdoor fiber optic cables

  • In-house testing lab for performance and materials verification

  • OEM/ODM customization for fiber type, color, jacket, and printing

  • Fast delivery with global logistics support and stable quality supply
