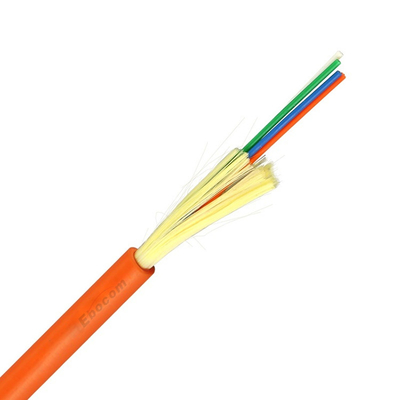

Indoor Optic Cable 12 24core Multimode OM1 OM2 OM3 OM4 Distribution Use
| Luogo di origine | Shandong, Cina |
|---|---|
| Marca | EBOCOM |
| Certificazione | ISO TLC |
| Numero di modello | GJFJV-12B1 |
| Quantità di ordine minimo | 2000M |
| Prezzo | EXW ≥2000m $0.16/M ≥5000m $0.14/M |

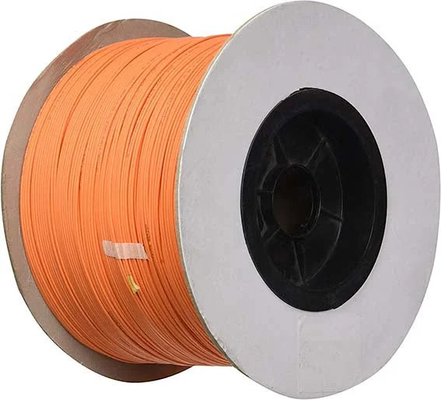

| Imballaggi particolari | 1. tamburo di legno di ferro o tamburo di legno non fumigante, tamburo di legno normale. 2. dimensio |
| Tempi di consegna | 5-8 Giorni |
| Termini di pagamento | T/T |
| Capacità di alimentazione | 5000 KMS/giorno |
Contattatemi per campioni e buoni.
CosaAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete qualche problema, offriamo assistenza online 24 ore su 24.
xDettagli
| Nome del prodotto | GJFJV/GJFJH | Giubbotto | PVC /LSZH |
|---|---|---|---|
| Membro della forza | Fabbricazione a partire da fibre sintetiche | Fibra | Modalità singola/Multimodalità |
| Marchio | Ebocom o OEM | ||
| Evidenziare | Multimode Indoor Optic Cable,OM1 Indoor Optic Cable,Distribution Indoor Optic Cable |
||
Descrizione di prodotto
Description
Indoor optical cables are a high-speed data transmission medium used to connect devices within buildings or data centers. They consist of optical fibers encased in protective sheaths and are designed for data transmission over relatively short distances. When optical cables are used indoors, safety and practicality are the main considerations. Therefore, optical cables for indoor use should be free of metals, halogens, be highly flexible, lightweight, and feature a completely dry design.
In recent years, indoor optical cables have become an important component of modern communication networks, as they can provide fast and reliable connections for enterprises, families and other organizations. Whether you are building a new data center, upgrading telecommunications infrastructure, or simply hoping to improve the speed and reliability of your internet connection, indoor optical cables can offer powerful solutions to meet your needs.
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
Mechanical Specifications
| Cable Model | Outer Diameter
(mm) |
Weight
(kg/km) |
Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius | Jacket Thickness(mm) | |||
| Long term | Short term | Long term | Short term | Dynamic | Static | ||||
| GJFJV-2F | 3.6±0.2 | 12.5 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.45±0.05 |
| GJFJV-4F | 4.7±0.2 | 17.6 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.8±0.1 |
| GJFJV-6F | 5.2±0.2 | 22.8 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-8F | 5.8±0.2 | 26.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-12F | 6.3±0.2 | 32.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-24F | 8.0±0.2 | 53 | 200 | 660 | 300 | 1000 | 20D | 10D | 1.0±0.1 |
