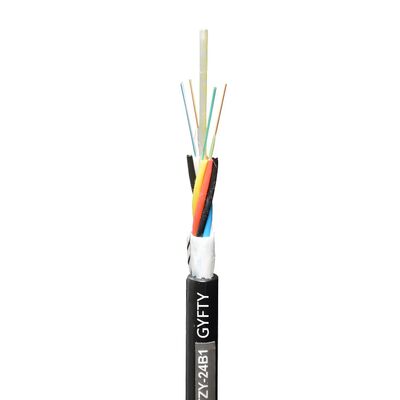

4~144 Core GYFTZY Flame-Retardant Non-Metallic Fiber Optic Cable
| Luogo di origine | Cina |
|---|---|
| Marca | Ebocom |
| Certificazione | ISO |
| Numero di modello | GYFTZY |
| Quantità di ordine minimo | 2000m |
| Prezzo | 0.02 USD per Meter |
| Imballaggi particolari | Tamboli di compensato o personalizzati |
| Tempi di consegna | 3-10 giorni |
| Termini di pagamento | L/C, T/T |
| Capacità di alimentazione | 100 km al giorno |
Contattatemi per campioni e buoni.
CosaAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete qualche problema, offriamo assistenza online 24 ore su 24.
xDettagli
| Tipo di fibra | G652D | Conta delle fibre | 4~144 core |
|---|---|---|---|
| Materiale della giacca | PE/LSZH | Imballaggio | tamburo 2-4km/wooden |
| Temperatura operativa | -40°c +70°c | Membro della forza | FRP |
| Oem | SÌ | Struttura | Tubo sciolto incagliato |
| Evidenziare | flame-retardant fiber optic cable,non-metallic outdoor fiber cable,4-144 core optical cable |
||
Descrizione di prodotto
Product Overview

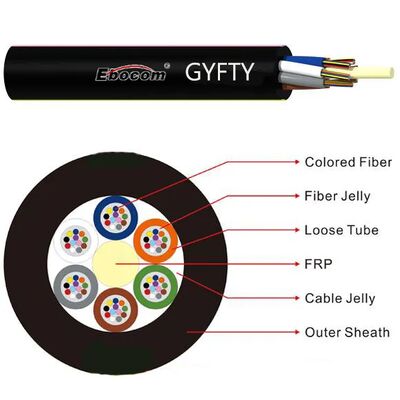

The GYFTZY flame-retardant non-metallic fiber optic cable is designed for safe, stable, and interference-free communication in indoor and building environments. Built with a central loose tube, FRP strength members, and an LSZH flame-retardant outer jacket, this cable provides reliable performance where strict fire-safety regulations apply.
We support custom flame-retardant levels (such as IEC 60332-1 / 60332-3 / B1 / B2) based on your project requirements.
Our factory is equipped with a vertical flame test chamber to ensure all GYFTZY cables meet the required fire-retardant standards before shipping.
This cable contains zero metal, making it ideal for complex indoor environments, electrical rooms, data centers, industrial facilities, and buildings where electromagnetic immunity is essential.
Key Features
-
Non-metallic design — FRP strength members, no induced voltage, no electromagnetic interference.
-
High flame-retardant LSZH jacket, customizable flame rating based on national and international standards.
-
Stable fiber protection with gel-filled or dry loose tube options.
-
Lightweight, flexible, and easy to install for indoor riser, vertical shafts, and pipeline environments.
-
Excellent mechanical performance for pulling, bending, and long-term reliability.
-
Suitable for single-mode (G.652D, G.657A1/A2) or multimode (OM1/OM2/OM3/OM4) fibers.
Typical Applications
-
Indoor fiber backbone cabling
-
Vertical riser cabling in high-rise buildings
-
Data centers & equipment rooms
-
Fire-safety-required environments (hospitals, schools, public buildings)
-
Industrial automation networks
-
Areas requiring non-metallic and flame-retardant cables
Technical Specifications (GYFTZY Non-Metallic Flame-Retardant Cable)
| Item | Specification |
|---|---|
| Cable Type | GYFTZY Non-Metallic Flame-Retardant Optical Cable |
| Fiber Types | G652D / G657A1 / G657A2 / OM2 / OM3 / OM4 |
| Fiber Count | 4–144 cores (customizable) |
| Strength Members | FRP rods (non-metallic) |
| Structure | Central loose tube, gel-filled or dry structure |
| Outer Jacket Material | LSZH flame-retardant |
| Flame Rating Options | B1, B2 (customizable) |
| Outer Diameter | Based on fiber count & FRP size (customizable) |
| Tensile Strength | 600–1500N (depending on design) |
| Crush Resistance | 1000–2000 N/10cm |
| Operating Temperature | -20°C ~ +60°C |
| Installation Temperature | -10°C ~ +50°C |
| Electric Performance | 100% non-metallic, no grounding needed |
| Compliance | ITU-T standards, IEC, ISO9001 |
Why Choose Ebocom GYFTZY?
-
In-house flame-retardant testing (vertical burn test machine) ensures reliable safety performance.
-
Full OEM/ODM support including jacket printing, flame class, color, and fiber specifications.
-
Over 12 years of manufacturing experience, exporting to more than 20+ countries.
-
Fast delivery, strong production capacity, and stable quality consistency.
