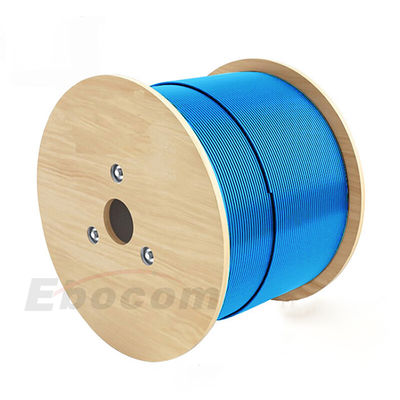

Flame Retardant Mining Cable MGTSV G652D 12 24 36 48 core Outdoor Armoured Communication
| Luogo di origine | Shandong ， Cina |
|---|---|
| Marca | EBOCOM |
| Certificazione | ISO TLC |
| Numero di modello | MGTSV |
| Quantità di ordine minimo | 2000m |
| Prezzo | EXW ≥2000m $0.47/M ≥5000m $0.4/M |
| Imballaggi particolari | 1. tamburo di legno di ferro o tamburo di legno non fumigante, tamburo di legno normale. 2. dimensio |
| Tempi di consegna | 7-15 giorni |
| Termini di pagamento | T/T |
| Capacità di alimentazione | 10 km/giorno |
Contattatemi per campioni e buoni.
CosaAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete qualche problema, offriamo assistenza online 24 ore su 24.
xDettagli
| Modello del cavo | Cavo in fibra ottica MGTSV | Membro della forza | nastro di filo di acciaio |
|---|---|---|---|
| Materiale della giacca | PE ignifugo PE lszh | Piegare il raggio | 10*cavo-D statico 20*cavo-D dinamico |
| Temperatura operativa | -40°C~+70°C | Colore | Nero |
| Conta delle fibre | 4-288cores | Tipo di fibra | G652D G657A1 G657A2 |
| Data di consegna | 7-15 GIORNI | ||
| Evidenziare | Flame retardant mining optic cable,Armoured outdoor communication cable,MGTSV G652D fiber optic cable |
||
Descrizione di prodotto
Product description

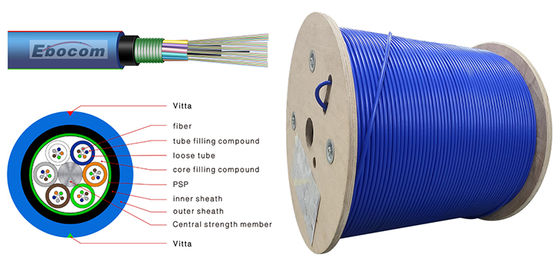

This optical cable employs a loose tube laminate structure. The optical fiber core is placed inside a loose tube made of high-elasticity polyester, which is filled with a waterproofing agent. The loose tube (and the filling rope) are wound around a central metal reinforcing core (phosphate steel wire) to form a compact optical cable. The gaps in the cable body are filled with a waterproofing agent, and a layer of blue flame-retardant PVC sheath is extruded outside the optical fiber core.
Application
Primarily used in the coal industry
• Certified by national authorities
• Suitable for cable trays in mines, tunnels, and mining applications
2.Features

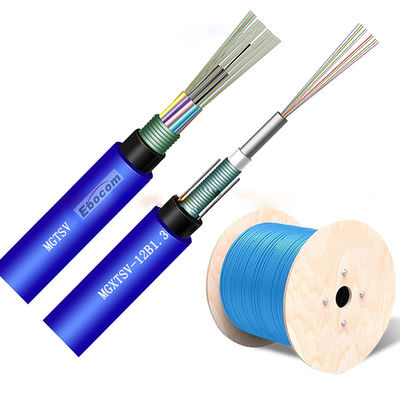

This optical cable employs a loose-tube, multi-layered structure.
Optical fibers are inserted into highly elastic polyester loose tubes, which are filled with a waterproofing agent.
The loose tubes (and filler ropes) are wound around a metal central reinforcing core (phosphate steel wire), forming a compact optical cable.
The gaps in the cable body are filled with a waterproofing agent, and a blue flame-retardant PVC sheath is extruded over the cable core.
MGTSV is suitable for mines such as coal, gold, and iron mines. Its flame-retardant and rodent-proof properties make it ideal for mines, especially those with high accident rates. It ensures uninterrupted communication and reduces losses in the event of an accident.
A steel outer shell protects the cable from rodent bites and ensures its robustness and durability. The double-sheath structure provides excellent moisture resistance and pressure resistance. The outer sheath is flame-retardant, and the loose tube material itself has excellent hydrolysis resistance. Its waterproof performance ensures safety in underground mines.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
