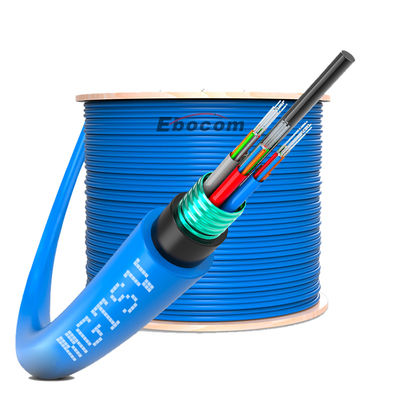

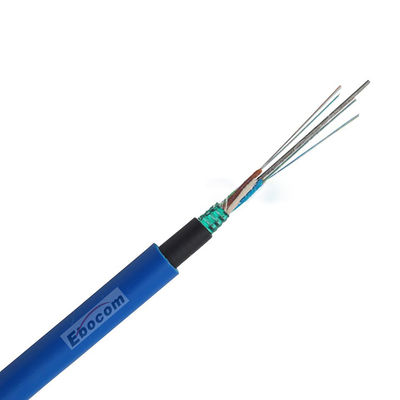

Flame-Retardant MGTSV Mining Fiber Optic Cable 12 24 36 48 60 72 Core Double Jackets For Mining
| Luogo di origine | Shandong ， Cina |
|---|---|
| Marca | EBOCOM |
| Certificazione | ISO TLC |
| Numero di modello | MGTSV |
| Quantità di ordine minimo | 2000m |
| Prezzo | EXW ≥2000m $0.5/M ≥5000m $0.47/M |
| Imballaggi particolari | 1. tamburo di legno di ferro o tamburo di legno non fumigante, tamburo di legno normale. 2. dimensio |
| Tempi di consegna | 7-15 giorni |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 10 km/giorno |
Contattatemi per campioni e buoni.
CosaAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete qualche problema, offriamo assistenza online 24 ore su 24.
xDettagli

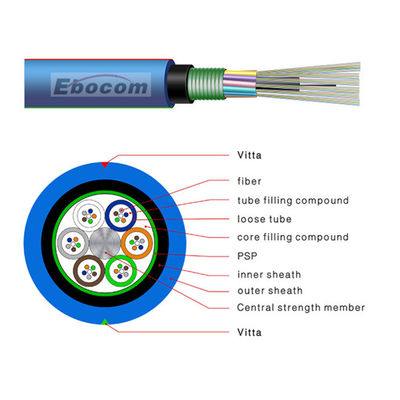

| Modello del cavo | Cavo in fibra ottica MGTSV | Membro della forza | nastro di filo di acciaio |
|---|---|---|---|
| Materiale della giacca | PE ritardante della fiamma PE/lszh | Piegare il raggio | 10*cavo-D statico 20*cavo-D dinamico |
| Temperatura operativa | -40°C~+70°C | Colore | Nero |
| Conta delle fibre | 4-288cores | Tipo di fibra | G652D G657A1 G657A2 |
| Evidenziare | flame-retardant mining fiber optic cable,MGTSV mining optic cable 72 core,double jacket mining fiber cable |
||
Descrizione di prodotto
Product description
MGTSV cable, or flame-retardant mine communication cable, is a fiber optic transmission cable designed for underground environments such as coal and gold mines. It is primarily used for signal transmission within mines, ensuring stable communication in complex environments such as those prone to flammable and explosive conditions, moisture, and mechanical impact. Its core feature is that it must pass the National Coal Mine Safety Mark Certification (MA/KA certification), making it a mandatory certification product. Products that have not obtained certification are not allowed to be used in mining scenarios.
Application
Intended for mines, mine shafts and cable trays used for mining applications
2.Features
Key Features and Installation Requirements:
- Core Performance
Flame-retardant and explosion-proof: The outer layer features a flame-retardant sheath, meeting underground coal mine fire protection requirements.
Anti-interference: Fiber optic transmission is immune to electromagnetic interference, and the non-metallic structure reduces the risk of electric shock.
Mechanical Protection: Steel tape armor enhances tensile and compressive strength, adapting to the complex underground installation environment.
- Installation Precautions
The installation must be kept away from fire sources and high-voltage equipment. Avoid excessive bending at corners that could cause fiber breakage.
After installation, insulation resistance and leak detection tests must be performed to ensure compliance with safety standards.
Pay attention to heat dissipation in summer and prevent low-temperature embrittlement in winter. Regularly check the air cooling and air heating status during operation.
3. Technical parameters
| Cable Type | Fiber Count | Tubes+Fills | Cable Diameter mm |
Cable Weight Kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Term N/100m |
Bending Radius Static/Dynamic mm |
| MGTSV-2～6 | 2～60 | 5 | 12.2 | 156 | 1000/2000 | 500/1500 | 15D/30D |
| MGTSV-62～72 | 62～72 | 6 | 13.8 | 210 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-74～96 | 74～96 | 8 | 15.1 | 242 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-98～120 | 98～120 | 10 | 17.2 | 280 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-122～144 | 122～144 | 12 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
| MGTSV-146～216 | 146～216 | 18 | 19.0 | 320 | 1750/3500 | 500/1500 | 15D/30D |
